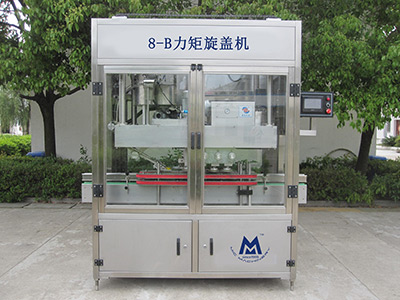

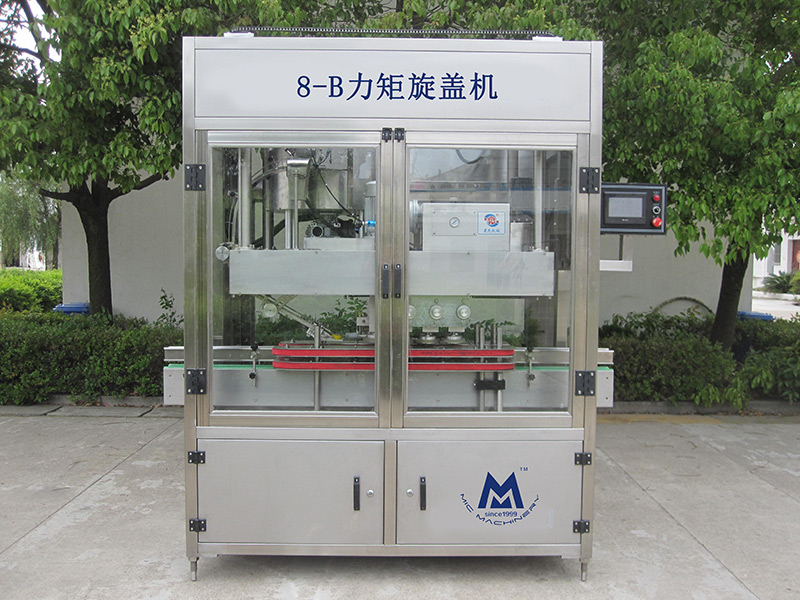

FXZ-8-B力矩旋盖机

本机是在FXZ-6直列式旋盖机基础上优化改进产品。其主要优点：前段3组轮采用滚盖，（可调整旋紧的一致性）进行初旋，后段1组轮采用力矩旋盖进行精确旋紧，从而保证了一致性的力矩。对于大小不同瓶盖可调整力矩轮的气压，即可达到所需的相应力矩要求。该机除有歪盖处理、无盖处理外，还配有倒盖装置，通过此“倒盖装置”可以使盖与瓶更好地配合，以便顺利进入旋盖。该机也配备无铝箔剔除装置，无铝箔的盖在下盖前被自动剔除，确保了铝箔的在盖率为100%。该机采用了PLC控制系统，实现数据存储，随时可以调用，能快速改变包装规格。本机符合GMP要求。



主要参数：

1.旋盖轮数：8轮

2.电源：380V三相四线

3. 总功率： 2.5KW

4. 适用瓶径：Ф40mm-Ф90mm

5. 适用盖径：Ф20mm-Ф70mm

6. 理盖合格率：99.99%

7. 生产速度：≤8000瓶/小时

8. 工作气压：0.55MPa-0.65MPa

9. 耗气量：0.6 m3/min

10. 外形尺寸：2000mm ×1058mm ×2995mm

11. 机器重量：500 kg





FXZ-8-B Torque capping machine

This machine adopts the PLC system to store the data. It can change the packing specifications quickly. The torque plays an important role in the sealing quality. The machine twists the caps through the first capping part, then screws accurately through the second torque capping part. Adjusting the pressure of torque wheels according to the different caps, it can guarantee the consistency of torque and meets the requirements of different caps easily. This machine can deal with the inclined cap and non-cap. Cap reverse device can match the cap and the bottle well

An extra non-foil rejecting device can be selected; it can reject the caps without the aluminum foil, to achieve the 100% accuracy of foil inside the cap. It is in accords with GMP.

Technical parameters:

1、Capping wheel: 8

2、Voltage: 380V, three-phase and four-wire

3、Power: 2.5KW

4、Suitable bottle dia.：Φ40- 90mm

5、Suitable cap dia.：Φ20- 70mm

6、Accuracy: 99.99%

7、Speed：≤8000bottles/hour

8、Air pressure: 0.55-0.65Mpa

9、Air consumption: 0.6m3/min

10、Dimensions：2000*1058*2995mm

11、Weight：500kg
