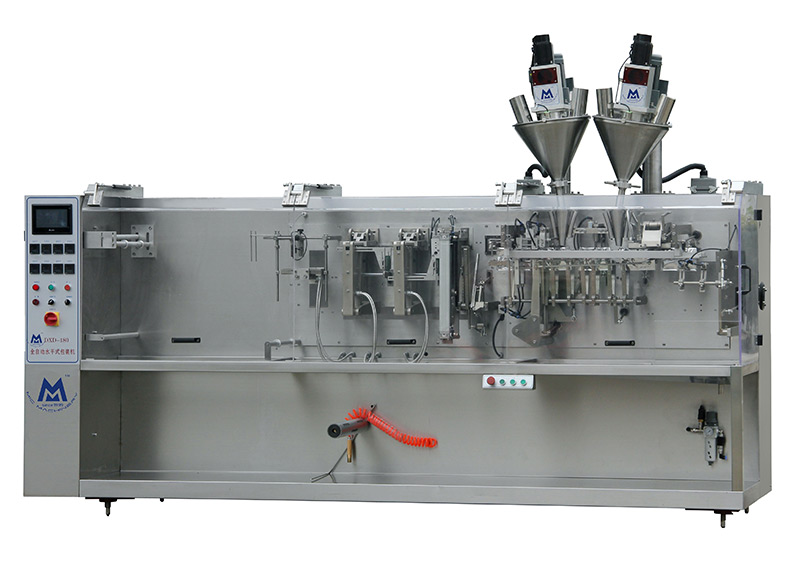

DXD-180水平式全自动包装机+机械手+装箱台
   本机是在吸取了国内外袋装包装机先进经验的基础上,研制的新一代大剂量袋装包装设备。本机采用了PLC可编程控制系统和触摸屏操作系统,实现了由膜卷→袋成形→制袋→充填→封口→成品输送的功能。根据用户需求最后的成品可以通过机械手进行数包,再由人工进行装盒或装箱。在本机上可实现粉剂、颗粒剂、水剂和膏体的充填转换;根据需要可实现三边或四边封口;还可进行单联袋与双联袋的选择。与物料接触部分采用优质316不锈钢。其余机器部件均采用优质304不锈钢制作。本机符合GMP要求,有效地防止粉尘外泄,更环保、无污染。

主要参数:
1. 包装袋规格:
单袋: 85-180mm(宽)×100-220mm(高)
双袋: 65-90mm(宽)×100-220mm(高)
2. 生产速度:
单袋: 40-60袋/分钟
双袋: 80-120袋/分钟
3. 粉剂类包装范围:5-100g(根据物料比重会有不同)
  水剂类包装范围:5 -120ml (根据物料比重会有不同)
4. 电源: 380V  三相四线
5. 总功率:4KW
6. 计量误差:≤±1%
7. 卷膜直径:≤Ф500mm
8. 工作气压:0.6-0.8MPa
9. 耗气量:0.8m3/min
10. 外形尺寸:3260mm ×1020mm ×2390mm
11. 机器重量:1050 kg

DXD-180
Automatic Horizzontal Packing Machine+mechanical hand+workingtable
This machine is based on the advanced experience of home and abroad bag packing machine ,new generation of the large dose bag packing machine
Adopts the PLC and touch screen operating system,can realized the functions of film roll→ bag forming→filling→ bag making→sealing→finished product conveying in one machine. With  the special requirements,it also can count the bag by mechanical hand  and then collect the bags into box or cartons manually
The  machine controled by PLC system, it can realize the packaging of powder, granules, liquid and viscous liquid when changing packing heads. It can do the three-side and four-side sealing easily. Can choose the function of double-bag or single -bag packing . The parts contacting with the material adopt 316 high-quality stainless steel, the other parts use the 304 stainless steel. The whole machine accords to the GMP requirements, easy to disassemble and clean.
Technical parameters:
1. Bag size :
single bag: 85-180mm(w)×100-220mm(H)
double bag : 65-90mm(w)×100-220mm(H)
2. Packing speed :
single bag:40-60bags/min
double bag :80-120bags/min
3. Volume:(powder)5g-100g/ (liquid)5-120ml (according to the proportion of materials)
4. Voltage: 380V(three-phase four -wire )
5. Power:4Kw
6. Filling precision:≤±1%
6. Roll film diameter:≤500mm
7. Air pressure: 0.6-0.8Mpa
8. Air consumption: 0.8m3/min
9. Dimensions:3260* 1020*2390mm
10. Weight:1050 kg
