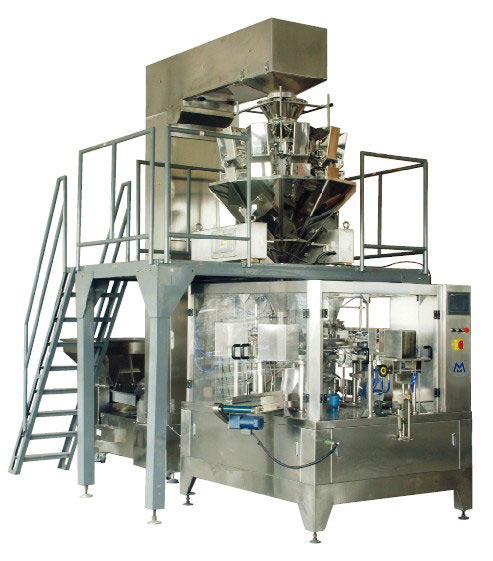

GD6-200C给袋式包装机
本机是在消化和吸取国内外同类产品的先进经验的基础上，研制出的新一代产品。它应用广泛，适用于各种物料的包装。通过与液体灌装机、组合秤、螺杆秤等配套使用，可进行液体、粉剂、颗粒、固体等各种物料的包装，只需根据不同的物料选择不同计量充填装置即可。该机采用了国际知名品牌的PLC控制系统和触摸屏的操作系统，使用变频调速装置,在规定范围内可随意调节速度;具有自动检测功能(如不开袋或开袋不完整时,不加料,不热封,袋子可再次利用。);当工作气压或加热管故障时,将有报警提示。根据生产需要可选择工位要求（如六工位，八工位）。本机与物料接触部位均采用优质不锈钢制作。本机符合GMP要求。
主要参数:
1、 机械工位：六工位
2、 袋子材料：PET/AL/CPP复合膜
3、 袋子类型：自立袋,平面袋
4、 袋子尺寸：长(100～350mm)×宽(100～210mm)
5、 生产速度：20-60袋/分（其速度由产品自身及填充重量决定）
6、 电源：380V 三相四线
7、 功率：2.5KW
8、 工作气压：0.6～0.8MPa
9、 耗气量：0.8m3/min
10、 外形尺寸:2215mm×1280mm×1650mm

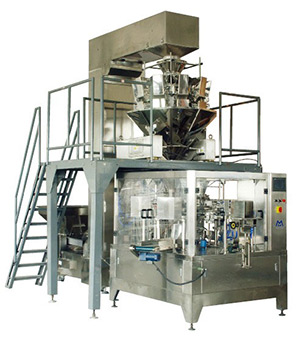

GD6-200C Pouch Packing Machine
This machine is a new generation, based on the experience of the same products home and abroad, this is a new generation.
It is widely used for packing various kinds of materials. Assorted with liquid filling device, combination weigher, screw scale, it can pack different materials like liquid, powder, granular, solid and so on.
Using the famous brand PLC and touch screen, it is easy to operate. Frequency control device can adjust the speed optionally in the suitable limit. IF the bag is not opened enough, the automatic detection function will not fill and seal and reuse the bags. It can alarm when the working air pressure and heating pipe have breakdown. According to the capacity, you can choose different working positions like six and eight.
The parts contacting with material use the high quality stainless steel.
This machine is in accord with GMP
Technical parameters:
1. Working position: 6
2. Pouch material: PET/AL/CPP composite membrane
3. Pouch type: doypack, flat bag
4. Pouch size: (100-350)*(100-210) (L*W)
5. Speed: 20-60 pouches/min
6. Voltage: 380V, three-phase four- wire
7. Power: 2.5KW
8. Air pressure: 0.6-08Mpa
9. Air consumption: 0.8m3/min
10. Dimensions: 2215*1280*1650mm
